Built with TSC durability, reliability and commitment to innovation, the 2-inch-format TDP-225 series direct thermal printer features a compact design and high performance engine that make it ideal for many healthcare, retail and asset tagging labeling applications.

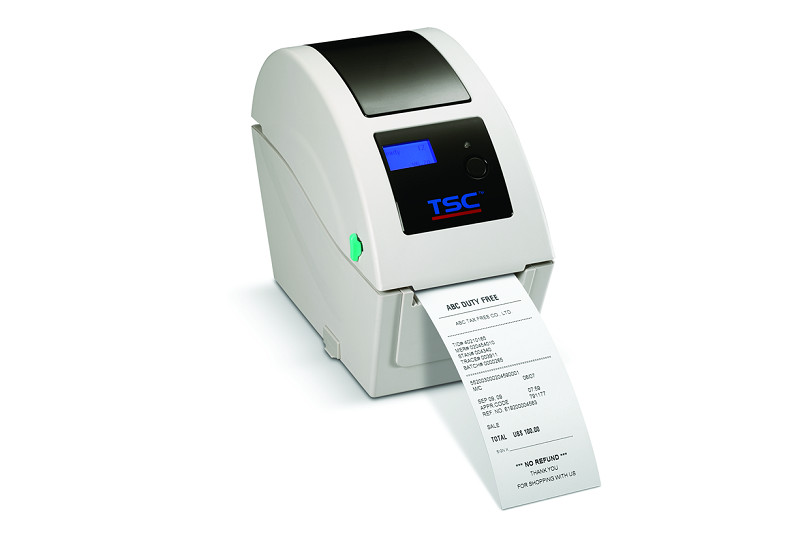

The TDP-225 prints at 5 ips and is the first low-cost affordable compact 2-inch desktop printer to offer an optional LCD display for easy tracking of print job status. Other outstanding features include an inexpensive internal Ethernet adapter for easy integration into networks and an optional keyboard for printing labels in stand-alone or down-time situations. The TDP-324 is also available, featuring high resolution 300 dpi printing resolution and 4 ips print speed.

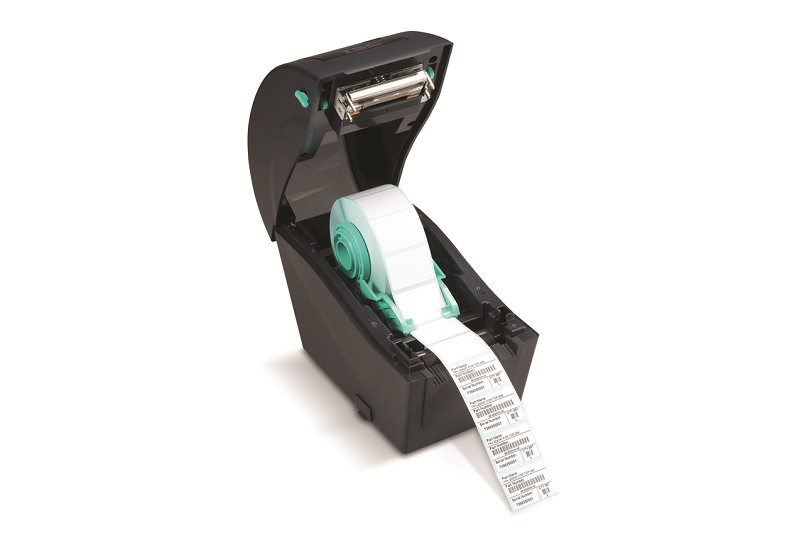

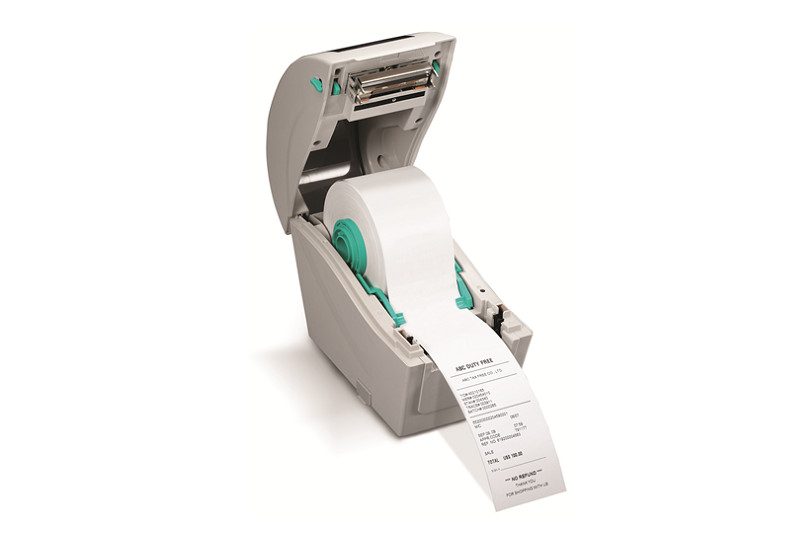

Designed with no losable parts, the compact TDP-225 series fits into tight spaces and supports a wide range of applications. It also features a user-friendly clamshell design that allows users to simply open the cover and drop labels into a spring-loaded 5-inch OD media bay. Top-of-form sensing by gap, black mark or notch is standard, and the black mark sensor is completely adjustable from side to side.
With enhanced electronics, the TDP-225 series offers a 200 MHz processor, standard memory of 4 MB Flash, 8 MB SDRAM and a microSD expansion slot that increases Flash storage up to 4 GB. The printer supports standard industry emulations, including the Eltron® and Zebra® languages.
Jewelry Tags
Retail Point-Of-Sale
Shelf Labeling
Product Marking
Healthcare Specimen Labeling
Healthcare Patient Tracking
Inventory & Asset Management
Small Office or Home Office Mailing
Shipping
File-Folder Labeling
High quality double-walled clamshell design
127 mm (5") OD media capacity
Up to 127 mm (5") per second print speed
Available in 203 dpi and 300 dpi resolutions
Easy media loading
Head open sensor
microSD Flash memory expansion up to 4 GB
Serial and USB 2.0 connectivity
Optional front LCD display, internal Ethernet, peel-off module, cutter module and stand-alone keyboard
ENERGY STAR® qualified
Cerner certified
The TDP-225 prints at 5 ips and is the first low-cost affordable compact 2-inch desktop printer to offer an optional LCD display for easy tracking of print job status. Other outstanding features include an inexpensive internal Ethernet adapter for easy integration into networks and an optional keyboard for printing labels in stand-alone or down-time situations. The TDP-324 is also available, featuring high resolution 300 dpi printing resolution and 4 ips print speed.
Designed with no losable parts, the compact TDP-225 series fits into tight spaces and supports a wide range of applications. It also features a user-friendly clamshell design that allows users to simply open the cover and drop labels into a spring-loaded 5-inch OD media bay. Top-of-form sensing by gap, black mark or notch is standard, and the black mark sensor is completely adjustable from side to side.
With enhanced electronics, the TDP-225 series offers a 200 MHz processor, standard memory of 4 MB Flash, 8 MB SDRAM and a microSD expansion slot that increases Flash storage up to 4 GB. The printer supports standard industry emulations, including the Eltron® and Zebra® languages.
Jewelry Tags
Retail Point-Of-Sale
Shelf Labeling
Product Marking
Healthcare Specimen Labeling
Healthcare Patient Tracking
Inventory & Asset Management
Small Office or Home Office Mailing
Shipping
File-Folder Labeling
High quality double-walled clamshell design
127 mm (5") OD media capacity
Up to 127 mm (5") per second print speed
Available in 203 dpi and 300 dpi resolutions
Easy media loading
Head open sensor
microSD Flash memory expansion up to 4 GB
Serial and USB 2.0 connectivity
Optional front LCD display, internal Ethernet, peel-off module, cutter module and stand-alone keyboard
ENERGY STAR® qualified
Cerner certified
