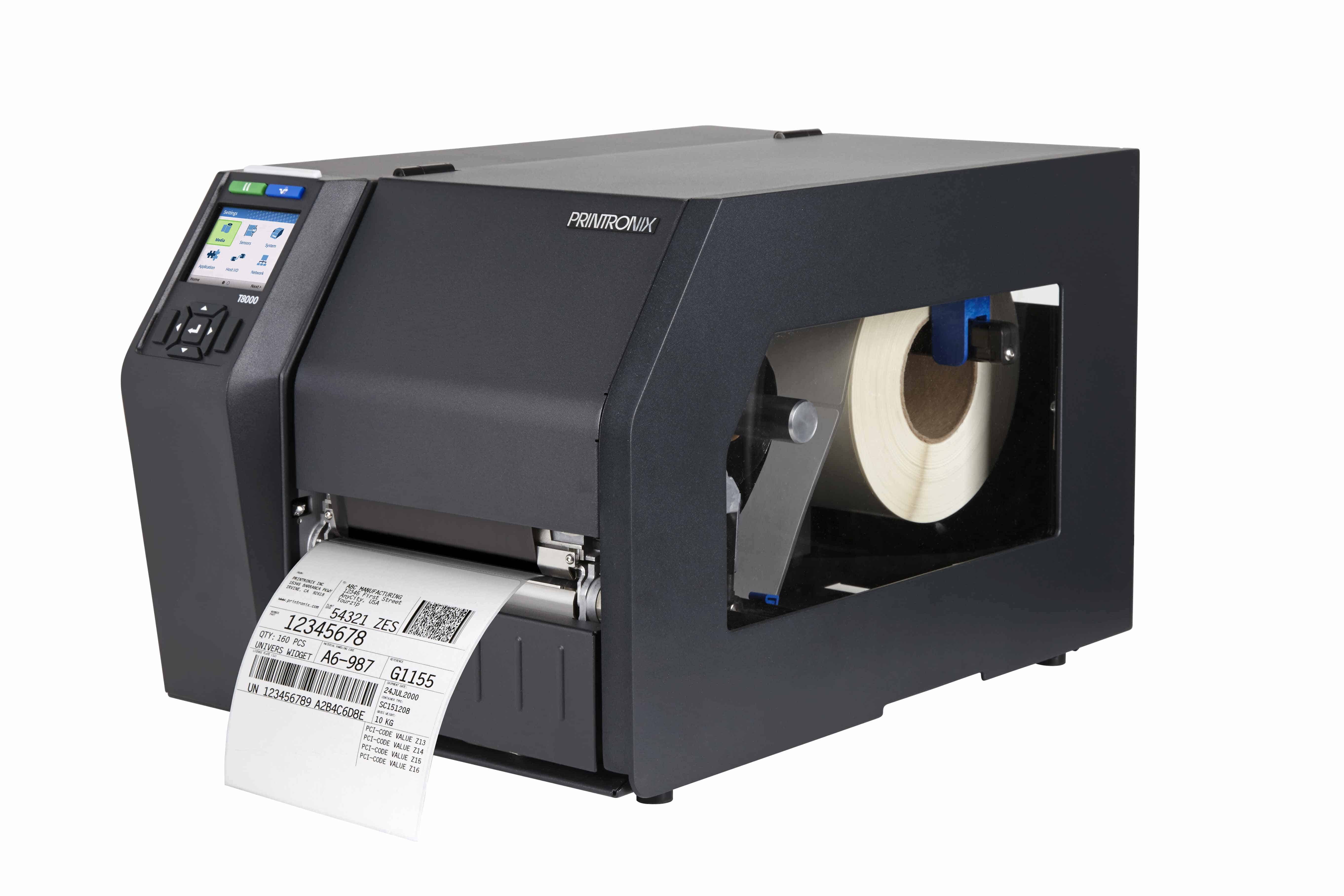

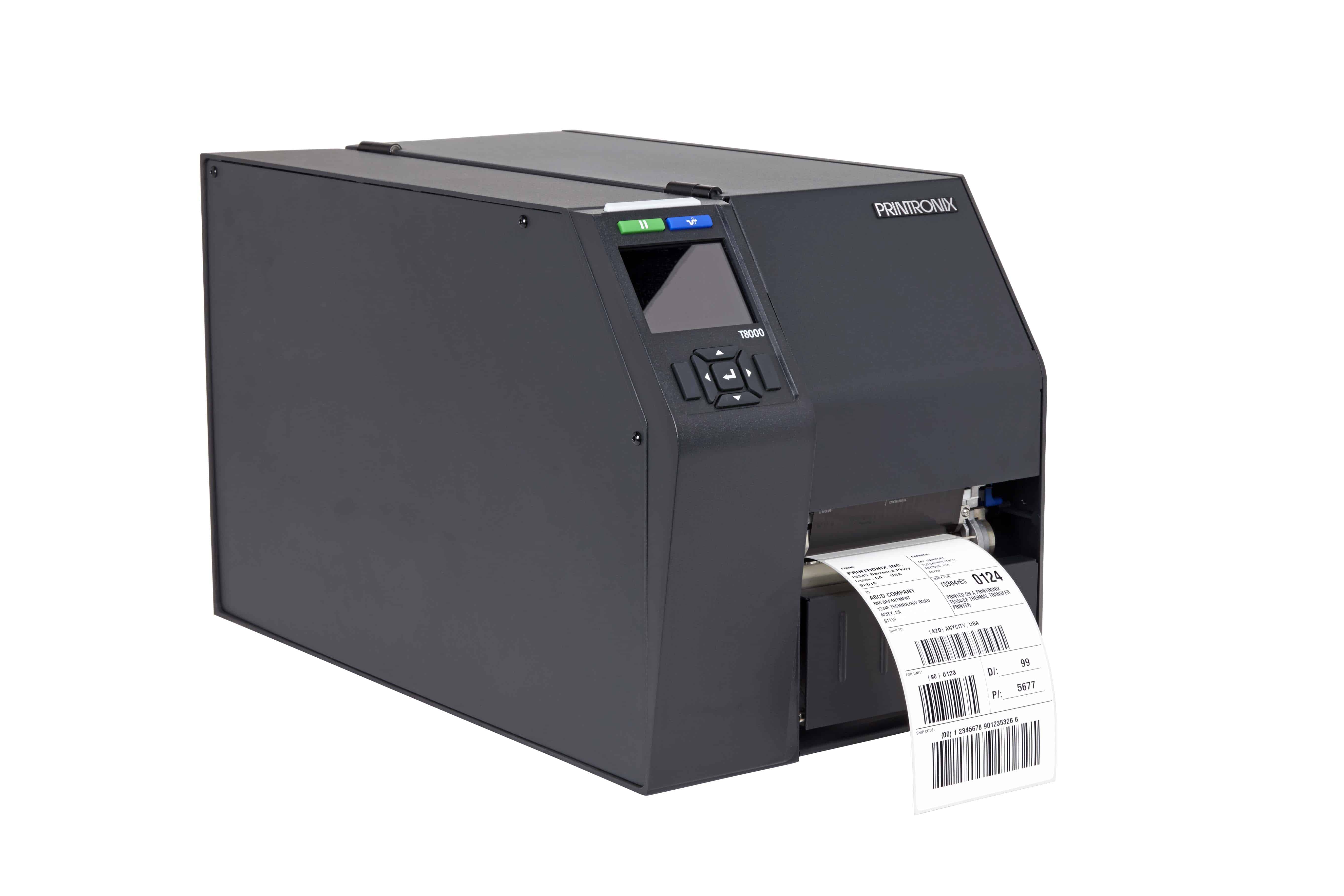

T8000
Reliable, powerful, and a proven design that exceeds the requirements of the most demanding mission critical manufacturing and distribution operations.
PRODUCT BENEFITS
High performance ARM Cortex-A9
Available in 203 DPI and 300 DPI
4”, 6”, and 8” model configurations
Die-cast aluminum frame w/metal doors
Dual motor ribbon drive system
Transfer and direct printing
State-of-the-art WiFi Connectivity
512MB RAM / 128 Flash Memory
4-32 GB SD flash memory card capability
Premium Asian and Andale font support
ENERGY STAR Certified. Printronix Auto ID is proud to offer our customers products that have earned the government’s ENERGY STAR label
PHYSICAL CHARACTERISTICS
Width (4″/6″/8″): 11.7″ (297.2mm) / 13.4″ (340.4mm) / 15.4″ (391.2mm)
Height (4″/6″/8″): 13″ (330.2mm) / 13″ (330.2mm) / 13″ (330.2mm)
Depth (4″/6″/8″): 20.5″ (520.7mm) /20.5″ (520.7mm) / 20.5″ (520.7mm)
Printer Weight (4″/6″/8″): 37 lbs. (16.7Kg.) / 40 lbs. (18.1 Kg.) / 43 lbs. (19.5Kg.)
Shipping Weight (4″/6″/8″): 46 lbs. (20.8Kg.) / 49 lbs. (22.2 Kg.) / 52 lbs. (23.6Kg.)
PROGRAMMING PRINTER LANGUAGES
IGP Languages: PGL/VGL/ZGL/TGL/IGL/STGL/DGL/IEGL/MGL
Line Printer Plus Languages: P-Series + XQ, Proprinter, Serial Matrix, Epson
Job Control Languages: PJL, XML, and PTX-SETUP
Optional Languages: IPDS, TN5250/TN3270, PDF Level 1.7, Postscript Level 3
COMMUNICATION AND CONNECTIVITY/INTERFACE
Standard Interface I/O: Serial RS232, USB, and Ethernet 10/100Base T
Optional Interface I/O: Parallel, WiFi (802.11a/b/g/n), GPIO
WiFi Security Protocol: WEP 40/128bit, WPA Personal (TKIP), WPA2 Personal (AES/CCMP), EAP-PEAP, EAP-TTLS, PEAPv0/EAP-MSCHAPv2, EAP-TLS
BARCODE VALIDATION
Online Data Validator (ODV) – Validates, Grade, Report, and Overstrike barcodes Supports 1D Barcodes
MEDIA HANDLING MODES
Standard: Continuous, Tear-Off Strip, Tear-Off
Options: Peel-Off, Cut, and Rewind
OPERATING ENVIRONMENT
Operating Temperature (Direct Thermal w/o accessories): 23 to 104 F (-5 to 40 C)
Operating Temperature (Thermal Transfer or Direct Thermal w/ accessories): 40 to 104 F (5 to 40 C)
Operating Humidity Range: 20 to 85% Non-Condensing
Storage Temperature: -23 to 140 deg. F, (-5 to 60 deg. C)
Storage Humidity Range: 5% to 85% Non-condensing
POWER REQUIREMENT
Line Input: Auto Range 90 – 264 VAC (48 – 62 Hz)
REGULATORY COMPLIANCES
Emissions: FCC, CE, CCC
Safety: cTUVus, CE, EAC, SABS, RCM, CCC, KCC, BSMI, S-MARK, NOM
Environmental: RoHS, WEEE, Energy Star
BARCODE SYMBOLOGIES
1D Barcodes: BC-412, Code 11, Code 39, Code 35, Code 93, Codabar, Code128 Subsets A/B/C, Industrial 2 of 5, Interleave 2 of 5, German I-2/5, EAN-8, EAN-13, UCC/EAN-128, UPC-A, UPC-E, UPCSHIP, UPS 11, MSI, Matrix 2 of 5, PLESSEY, POSTNET, 4-state PostBar, Australian 4-state, FIM, ITF14, TELEPEN, PLANET, USPS Intelligent Mail, LOGMARS
2D Barcodes: PDF-417, MicroPDF-417, Maxicode, DataMatrix, QR Codes, Aztec, GS1 Databar (RSS-14)
FONT, GRAPHIC SUPPORT
Graphic Formats: PCX, TIFF, BMP, PNG
Font Technologies: Intellifont, TrueType, Unicode
Standard Fonts: OCRA, OCRB, Courier, Letter Gothic, CG Times, CG Triumvirate/Bold/Condensed
Asian Fonts (Optional SD card): Simplified Chinese, Japanese, and Korean
Andale Fonts (Optional SD card): Simplified Chinese, Traditional Chinese, Korean, Japanese
PDF/ PostScript Level 3: 35 Fonts
REMOTE MANAGEMENT SOFTWARE
PrintNet Enterprise Suite: Enterprise grade remove management solution
OPTIONS AND ACCESSORIES
WiFi 802.11 a/b/g/n
Rewind with Peel & Present 4”/6”/8”
Parallel Port Card
Heavy Duty Cutter 4”/6”/8”
GPIO
TN5250
Premium Asian Font Cards
PostScript/PDF
Premium Andale Font Cards
IPDS
QCMC (SD Quick Change Memory Card)
Online Data Validator (ODV)
High performance ARM Cortex-A9
Available in 203 DPI and 300 DPI
4”, 6”, and 8” model configurations
Die-cast aluminum frame w/metal doors
Dual motor ribbon drive system
Transfer and direct printing
State-of-the-art WiFi Connectivity
512MB RAM / 128 Flash Memory
4-32 GB SD flash memory card capability
Premium Asian and Andale font support
ENERGY STAR Certified. Printronix Auto ID is proud to offer our customers products that have earned the government’s ENERGY STAR label
PHYSICAL CHARACTERISTICS
Width (4″/6″/8″): 11.7″ (297.2mm) / 13.4″ (340.4mm) / 15.4″ (391.2mm)
Height (4″/6″/8″): 13″ (330.2mm) / 13″ (330.2mm) / 13″ (330.2mm)
Depth (4″/6″/8″): 20.5″ (520.7mm) /20.5″ (520.7mm) / 20.5″ (520.7mm)
Printer Weight (4″/6″/8″): 37 lbs. (16.7Kg.) / 40 lbs. (18.1 Kg.) / 43 lbs. (19.5Kg.)
Shipping Weight (4″/6″/8″): 46 lbs. (20.8Kg.) / 49 lbs. (22.2 Kg.) / 52 lbs. (23.6Kg.)
PROGRAMMING PRINTER LANGUAGES
IGP Languages: PGL/VGL/ZGL/TGL/IGL/STGL/DGL/IEGL/MGL
Line Printer Plus Languages: P-Series + XQ, Proprinter, Serial Matrix, Epson
Job Control Languages: PJL, XML, and PTX-SETUP
Optional Languages: IPDS, TN5250/TN3270, PDF Level 1.7, Postscript Level 3
COMMUNICATION AND CONNECTIVITY/INTERFACE
Standard Interface I/O: Serial RS232, USB, and Ethernet 10/100Base T
Optional Interface I/O: Parallel, WiFi (802.11a/b/g/n), GPIO
WiFi Security Protocol: WEP 40/128bit, WPA Personal (TKIP), WPA2 Personal (AES/CCMP), EAP-PEAP, EAP-TTLS, PEAPv0/EAP-MSCHAPv2, EAP-TLS
BARCODE VALIDATION
Online Data Validator (ODV) – Validates, Grade, Report, and Overstrike barcodes Supports 1D Barcodes
MEDIA HANDLING MODES
Standard: Continuous, Tear-Off Strip, Tear-Off
Options: Peel-Off, Cut, and Rewind
OPERATING ENVIRONMENT
Operating Temperature (Direct Thermal w/o accessories): 23 to 104 F (-5 to 40 C)
Operating Temperature (Thermal Transfer or Direct Thermal w/ accessories): 40 to 104 F (5 to 40 C)
Operating Humidity Range: 20 to 85% Non-Condensing
Storage Temperature: -23 to 140 deg. F, (-5 to 60 deg. C)
Storage Humidity Range: 5% to 85% Non-condensing
POWER REQUIREMENT
Line Input: Auto Range 90 – 264 VAC (48 – 62 Hz)
REGULATORY COMPLIANCES
Emissions: FCC, CE, CCC
Safety: cTUVus, CE, EAC, SABS, RCM, CCC, KCC, BSMI, S-MARK, NOM
Environmental: RoHS, WEEE, Energy Star
BARCODE SYMBOLOGIES
1D Barcodes: BC-412, Code 11, Code 39, Code 35, Code 93, Codabar, Code128 Subsets A/B/C, Industrial 2 of 5, Interleave 2 of 5, German I-2/5, EAN-8, EAN-13, UCC/EAN-128, UPC-A, UPC-E, UPCSHIP, UPS 11, MSI, Matrix 2 of 5, PLESSEY, POSTNET, 4-state PostBar, Australian 4-state, FIM, ITF14, TELEPEN, PLANET, USPS Intelligent Mail, LOGMARS
2D Barcodes: PDF-417, MicroPDF-417, Maxicode, DataMatrix, QR Codes, Aztec, GS1 Databar (RSS-14)
FONT, GRAPHIC SUPPORT
Graphic Formats: PCX, TIFF, BMP, PNG
Font Technologies: Intellifont, TrueType, Unicode
Standard Fonts: OCRA, OCRB, Courier, Letter Gothic, CG Times, CG Triumvirate/Bold/Condensed
Asian Fonts (Optional SD card): Simplified Chinese, Japanese, and Korean
Andale Fonts (Optional SD card): Simplified Chinese, Traditional Chinese, Korean, Japanese
PDF/ PostScript Level 3: 35 Fonts
REMOTE MANAGEMENT SOFTWARE
PrintNet Enterprise Suite: Enterprise grade remove management solution
OPTIONS AND ACCESSORIES
WiFi 802.11 a/b/g/n
Rewind with Peel & Present 4”/6”/8”
Parallel Port Card
Heavy Duty Cutter 4”/6”/8”
GPIO
TN5250
Premium Asian Font Cards
PostScript/PDF
Premium Andale Font Cards
IPDS
QCMC (SD Quick Change Memory Card)
Online Data Validator (ODV)
PRINTER SPECIFICATIONS
Max Print Speed (4”/6”/8”): 14/12/10 IPS @ 203 DPI 12/10/8/ IPS @300 DPI
Print Method: Transfer and Direct
Resolution: 203 DPI or 300 DPI
Max. Print Width: 4.1” (104mm)/6.6” (168mm)/8.5” (216mm)
Printer Memory: 512MB RAM / 128MB Flash
MEDIA SPECIFICATIONS
Media Type: Roll or Fan-Fold Labels, Tags, Paper, Film, Tickets
Min. Media Width: (4”/6”/8”): 1” (25.4mm)/2” (50.8mm)/3” (76.2mm)
Max. Media Width: 4.5” (114.3mm)/6.8” (172.7mm)/8.75” (222.2mm)
Min. Media Length: 0.25” / 1.0” (Continuous/Tear-Off)/0.5” (Peel-Off)
Max. Media Length: Up to 99” (251.46cm)
Media Thickness: 0.0635mm (0.0025”) to 0.254mm (0.010”)
Media Roll Core Diameter: 1.5” (37.5mm) to 3.0” (76mm)
Max. Media Roll Diameter: 8.0” (209mm)
Media Sensing: Gap, Mark, Advanced Gap, Advanced Notch
RIBBON SPECIFICATIONS
Ribbon Type: Wax, Wax/Resin, Resin
Min. Ribbon Width: (4”/6”/8”) 1” (25.4mm)/2” (50.8mm)/3” (76.2mm)
Max. Ribbon Width: (4”/6”/8”) 4.5” (114.3mm)/6.8” (172.7mm)/8.75” (222.2mm)
Max. Ribbon Length: 625 Meters
Max Print Speed (4”/6”/8”): 14/12/10 IPS @ 203 DPI 12/10/8/ IPS @300 DPI
Print Method: Transfer and Direct
Resolution: 203 DPI or 300 DPI
Max. Print Width: 4.1” (104mm)/6.6” (168mm)/8.5” (216mm)
Printer Memory: 512MB RAM / 128MB Flash
MEDIA SPECIFICATIONS
Media Type: Roll or Fan-Fold Labels, Tags, Paper, Film, Tickets
Min. Media Width: (4”/6”/8”): 1” (25.4mm)/2” (50.8mm)/3” (76.2mm)
Max. Media Width: 4.5” (114.3mm)/6.8” (172.7mm)/8.75” (222.2mm)
Min. Media Length: 0.25” / 1.0” (Continuous/Tear-Off)/0.5” (Peel-Off)
Max. Media Length: Up to 99” (251.46cm)
Media Thickness: 0.0635mm (0.0025”) to 0.254mm (0.010”)
Media Roll Core Diameter: 1.5” (37.5mm) to 3.0” (76mm)
Max. Media Roll Diameter: 8.0” (209mm)
Media Sensing: Gap, Mark, Advanced Gap, Advanced Notch
RIBBON SPECIFICATIONS
Ribbon Type: Wax, Wax/Resin, Resin
Min. Ribbon Width: (4”/6”/8”) 1” (25.4mm)/2” (50.8mm)/3” (76.2mm)
Max. Ribbon Width: (4”/6”/8”) 4.5” (114.3mm)/6.8” (172.7mm)/8.75” (222.2mm)
Max. Ribbon Length: 625 Meters
