ODV-1D

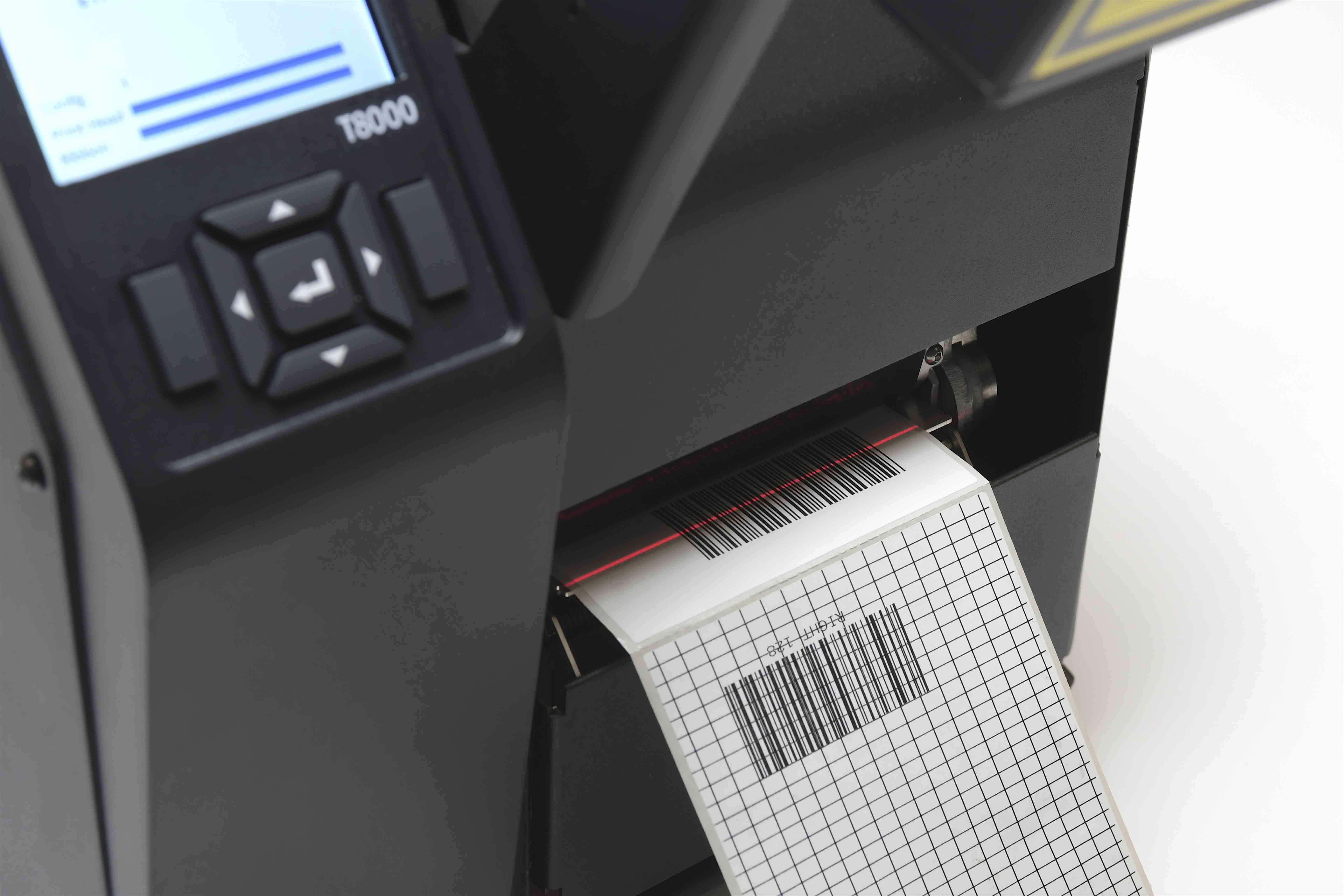

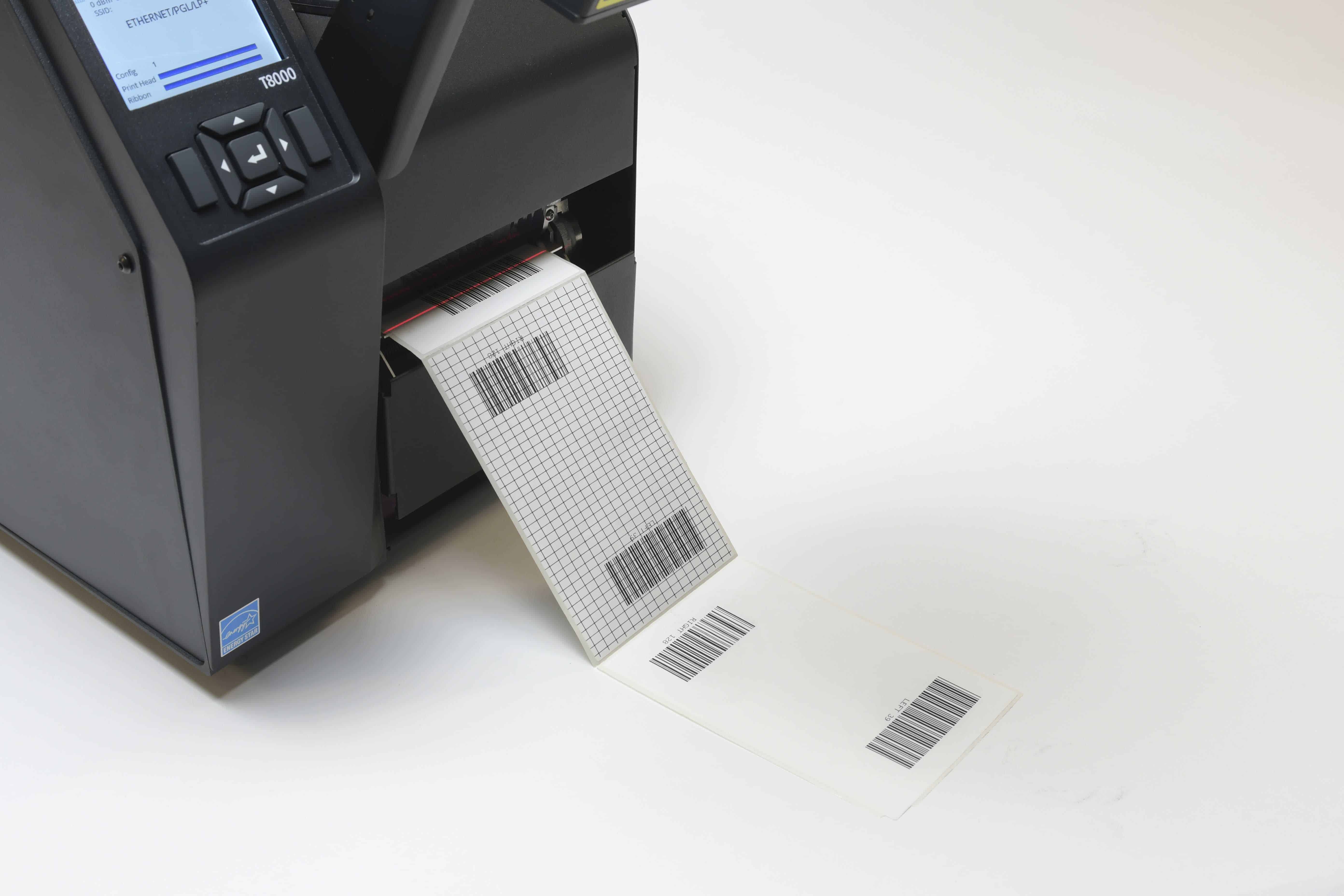

Printronix’ exclusive ODV (Online Data Validation) technology reads each barcode as it is printed, strikes out rejected barcodes and reprints a new label.
BARCODES SUPPORTED
Code 39
CODABAR
Interleafed 2 of 5
Code 93
Code 128
UPC/EAN plus add-ons
PDF417 (Limited)
Check linear star and stop bar only
LABEL REQUIREMENTS
Quiet Zone: Minimum 10 times x-dimension
Barcodes per line: UP to 4 codes on the same horizontal line
Barcodes per form: Up to 99 codes per form
Barcode orientation: Picket fence only
Horizontal Spacing: Minimum of .5” between codes on the same horizontal line
Barcode Height: Minimum barcode height is .13”
TOF to TOF Minimum distance .5”
LINEAR BARCODE SPECIFICATIONS
STANDARD ODV-OPTION
Scan Width: 4” (200mm). X-Dimension (min.): 6.6 mil(0.17mm) Min. Code Height: 0.13” (3.3mm)
Scan Width: 6.5” (165mm), X-Dimension (min.): 10 mil (0.25mm) Min. Code Height: 0.14” (3.6mm)
Scan Width: 8.5” (216mm), X-Dimension (min.): 13mm(0.33mm) Min. Code Height: 0.20” (5.1mm)
WIDE ODV OPTION
Scan Width: 8.5” (216mm), X-Dimension (min.): 13 mil (0.33mm) Min. Code Height: 0.20” (5.1mm)
*Scan width centered around middle part of print width. **Wide ODV available as a field option only.
PRINT RUN REPORT
Number of forms printed
Number of bad forms
Bar width deviation of last barcode
Number of codes printed
Average bar with deviation
VALIDATION ERRORS ACTIONS
Retry Form (default), Stop and Retry, Grade and Report, Rescan Form, Rescan and Retry, Rescan and Stop, Overstrike, Stop
VALIDATION ERROR NOTIFICATION MODES
Printer Display
Printer Audible Alarm
Printer Status Light
Remote Notification
TELEMENTARY REPORTS
Telemetry Path: Network Port
Data Contents (Selectable)
Short Pass/Fail quality results
Validation: Pass/Fail quality results + actual decoded data
Full: Validation + all measure parameters
AGENCY CERTIFICATIONS
cTUVus
CE
Class 2 Laser Product
EN60950-1:2006+A11:2009
EN60825-1:2007
