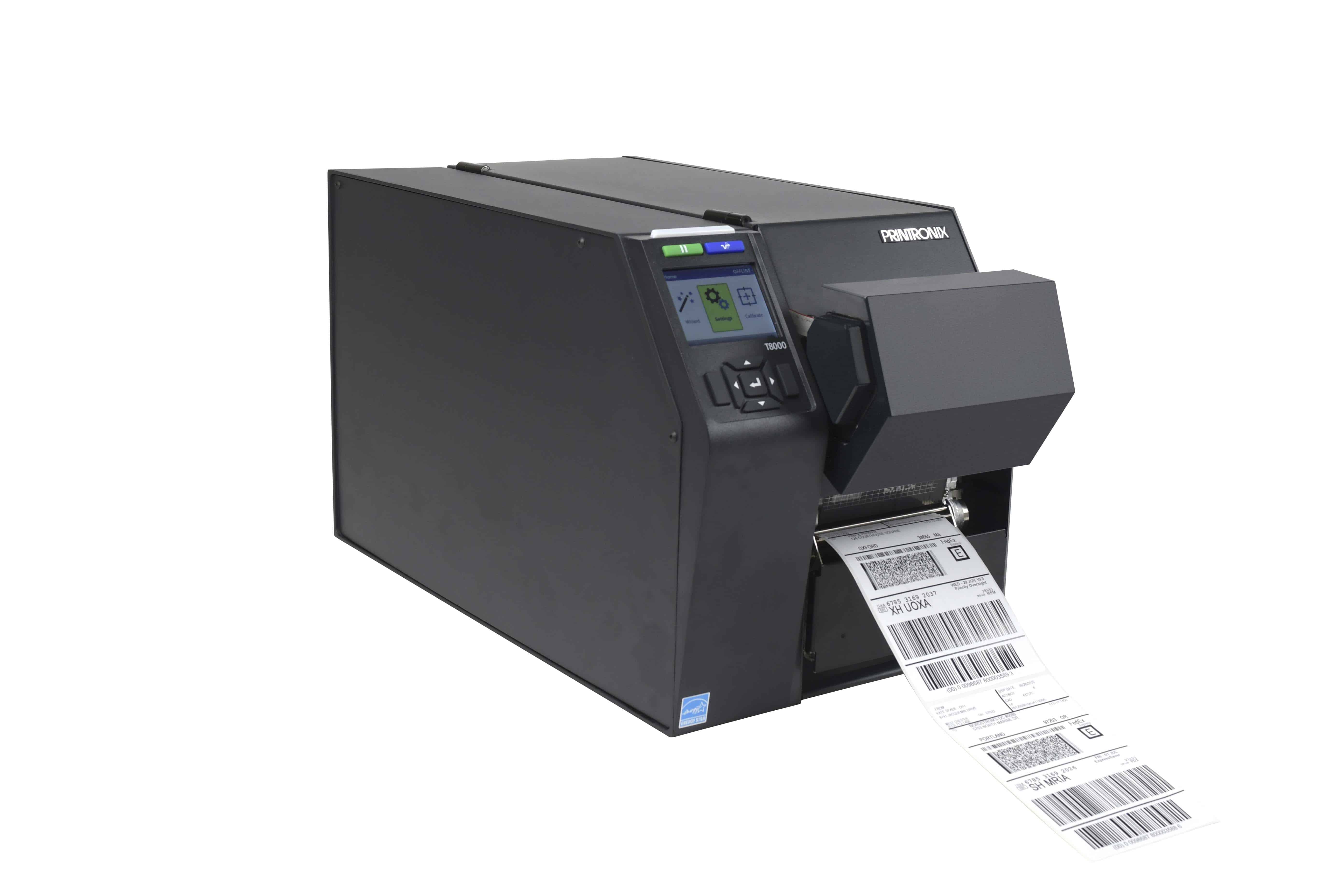

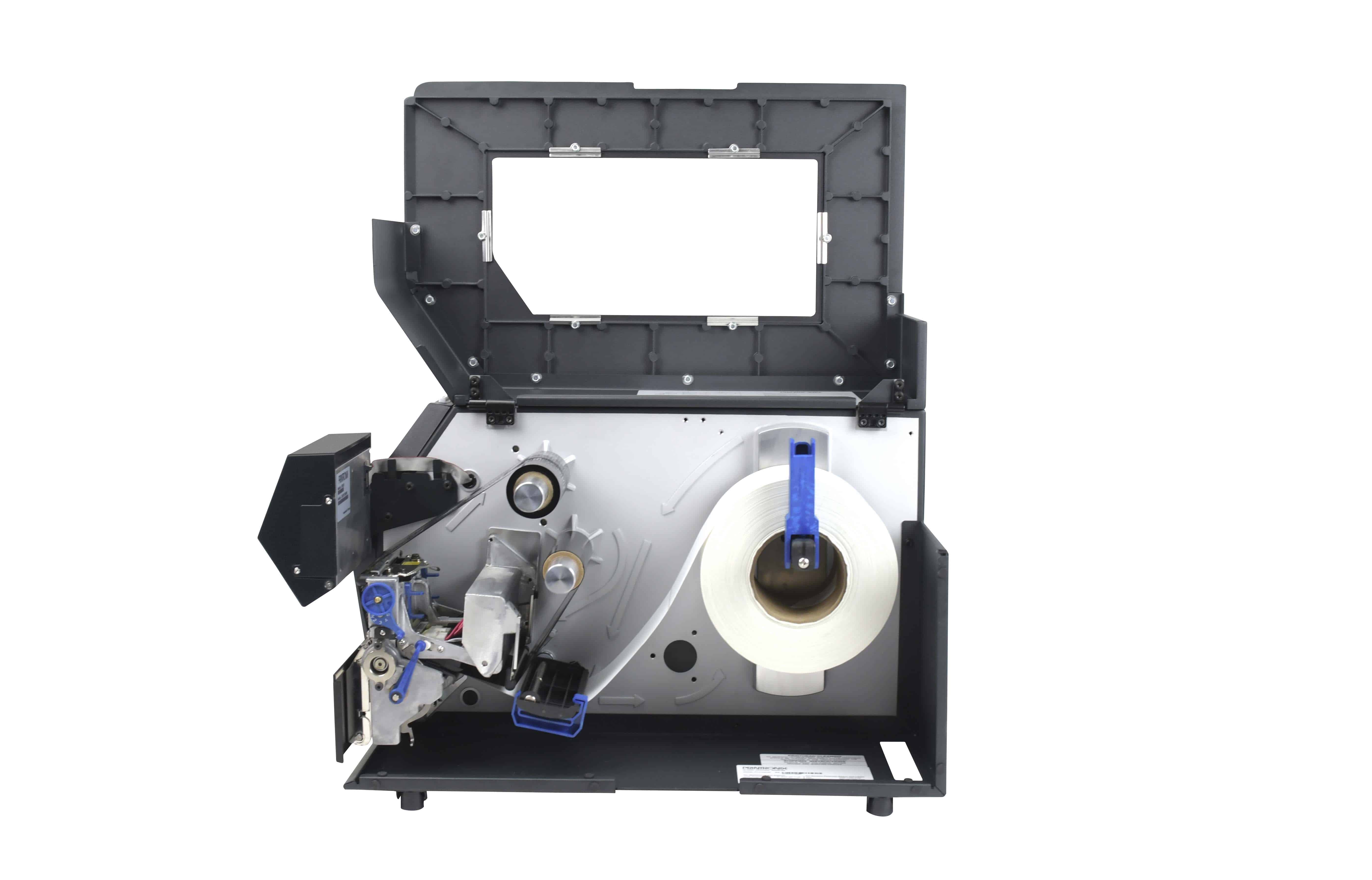

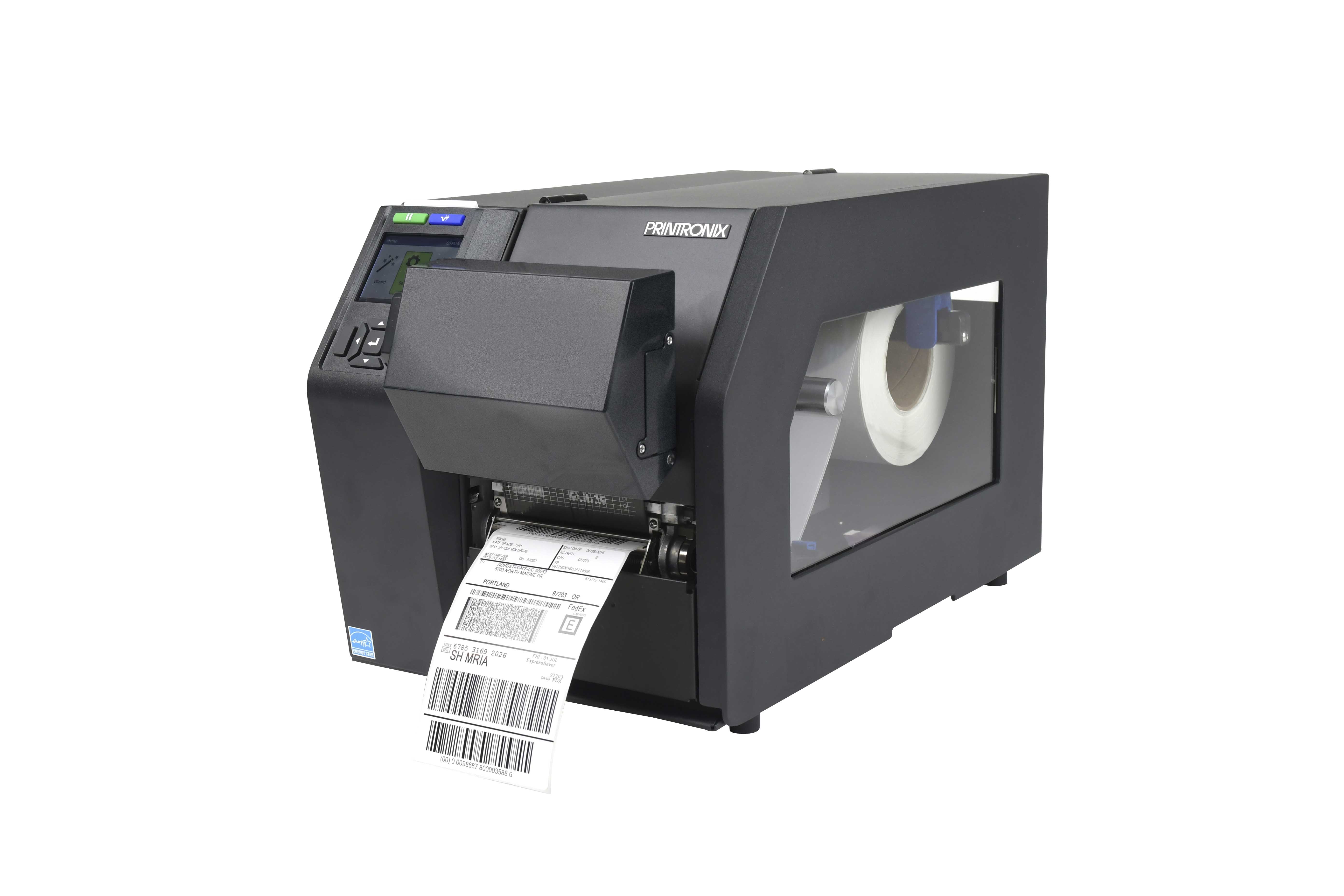

ODV-2D
ODV-2D is the industry’s first affordable, fully integrated solution with the ability to print and validate 1D and 2D barcodes.
PERFORMANCE
High performance ARM Cortex-A9
Available in 203 DPI and 300 DPI
Die-cast aluminum frame w/metal door
Dual motor ribbon drive system* Transfer and direct printing
512MB RAM / 128MB Flash Memory* 4” model configuration
4-32 GB SD memory card capability
Premium Asian and Andale font support
ENERGY STAR Certified
State-of-the-art WiFi connectivity
PRINTING CHARACTERISTICS
Max. Print Speed: 8 IPS @ 203 DPI, 8 IPS @ 300 DPI
Printing Methods: Thermal transfer or Direct thermal
Resolution: 203/300 DPI
Max. Print Width: 4.1” (104mm)
Printer Memory: 512MB RAM / 128MB Flash
MEDIA SPECIFICATIONS
Media Types: Roll or Fan-Fold Labels, Tags, Paper, Film, Tickets
Media Width: 1.0” (25.4mm) to 4.5” (114.3mm)
Min. Media Length: 0.25” / 1.0″ (Continuous/Tear-Off), .5″ (Peel-Off)
Max. Media Length: Up to 99″
Media Thickness: 2.5 Mil (0.0025″) to 10 Mil (0.010″)
Roll Core Diameter: 1.5″ (37.5mm) to 3.0″ (76mm)
Max. Media Roll Diameter: 8.0” (209mm)
Media Sensing: Gap, Mark, Advanced Gap, Advanced Notc
RIBBON CHARACTERISTICS
Ribbon Type: Wax, Wax/Resin, Resin
Min. Ribbon Width: 1″ (25.4mm)
Max. Ribbon Width: 4.5″ (114.3mm)
Max. Ribbon Length: 625 Meters
PHYSICAL CHARACTERISTICS
Width: 11.7″ (297.2mm) ]
Height: 13″ (330.2mm)
Depth: 20.5″ (520.7mm)
Printer Weight: 37 lbs. (16.7Kg.)
Shipping Weight: 46lbs. (20.8Kg.)
PRINTER LANGUAGE
IGP Languages: PGL/VGL/ZGL/TGL/IGL/DGL/IEGL/MGL
Job Control Languages: PJL, XML, and PTX-SETUP
Optional Languages: IPDS, TN5250/TN3270, PDF Level 1.7, Postscript Level 3
COMMUNICATION & CONNECTIVITY/INTERFACE
Standard Interface I/O: Serial RS232, USB, and Ethernet 10/100Base T
Optional Interface I/O: Parallel, WiFi (802.11a/b/g/n 2.4GHz), (802.11 a/n/ac 5GHz) GPIO
WiFi Security Protocol: WEP 40/128bit, WPA Personal (PSK), WPA2 Personal (PSK) and Enterprise (AES CCMP), EAP-TLS, EAP-TTLs, PEAPv0/MS-CHAPv2, PEAPv1, EAP-MD5
WiFi Security Protocol: WEP 40/128bit, WPA Personal (TKIP), WPA2 Personal (AES/CCMP), EAP-PEAP, EAP-TTLS, PEAPv0/EAP-MSCHAPv2, EAP-TLS Security Certificates
MEDIA HANDLING MODES
Standard: Continuous, Tear-Off Strip, Tear-Off
Options: Peel-Off, Cut, and Rewind
BARCODE VALIDATION
Barcode Type: 1D & 2D
Read Technology: 5MP Camera
Barcode GPS: Yes
Max Barcodes per label: 50
Overstrike Area: Full label
Validate Min. X-Dimension: 10 mils
Validate Max. X-Dimensions: 60 mils
Barcode Orientation: 0°, 90°, 180°, 270°
Barcode Grading: A, B, C, D, F
Grading Report: Yes
Validation Standard: Based on ISO/IEC 15415, 15416
Enterprise Network Support: Yes w/PNE
OPERATING ENVIRONMENT
Operating Temperature:
Direct Thermal w/o accessories: 23° to 104°F (-5 to 40°C)
Thermal Transfer: 40° to 104°F (5 to 40°C)
Operating Humidity: 20 – 85% Non-Condensing
Storage Temperature: 23 to 140°F (-5 to 60°C)
Storage Humidity: 5 – 85% Non-Condensing
POWER REQUIREMENT
Line Input: Auto Range 90 – 264 VAC (48 – 62 Hz)
REGULATORY COMPLIANCES
Emissions: FCC, CE, CCC
Safety: cTUVus, CE
Environmental: RoHS, WEEE, Energy Star
BARCODES SUPPORTED FOR VALIDATION*
1D Barcodes: Code 39, Code 93, Interleave 2/5, Code128, EAN-8, EAN-13, UPC-A, UPC-E, EAN UPC add-ons, Codabar
2D Barcodes: PDF-417, PDF-417 Truncated, PDF-417 Micro, DataMatrix, Datamatrix ECC 200, QR, Aztec,* Call to confirm compatibility, not all barcodes listed may be available initially.
FONT, GRAPHIC SUPPORT
Graphic Formats: PCX, TIFF, BMP, PNG
Font Technologies: Intellifont, TrueType, Unicode
Standard Fonts: OCRA, OCRB, Courier, Letter Gothic, CG Times, CG Triumvirate/Bold/Condensed
Asian Fonts (Optional SD card): Simplified Chinese, Japanese, and Korean
Andale Fonts (Optional SD card): Simplified Chinese, Traditional Chinese, Korean, Japanese
PDF/ PostScript Level 3: 35 Fonts
REMOTE MANAGEMENT SOFTWARE
PrintNet Enterprise Auto ID: Enterprise Grade Remote Management Solution
OPTIONS AND ACCESSORIES
WiFi 802.11 a/b/g/n (US/EU/CAN)
Parallel Port
GPIO
TN5250
PDF/PostScript
IPDS
Rewind 4″/6″
Peel & Present 4″/6″
Premium Asian Font Cards
Premium Andale Font Cards
QCMC (SD Quick Change Memory Card)
